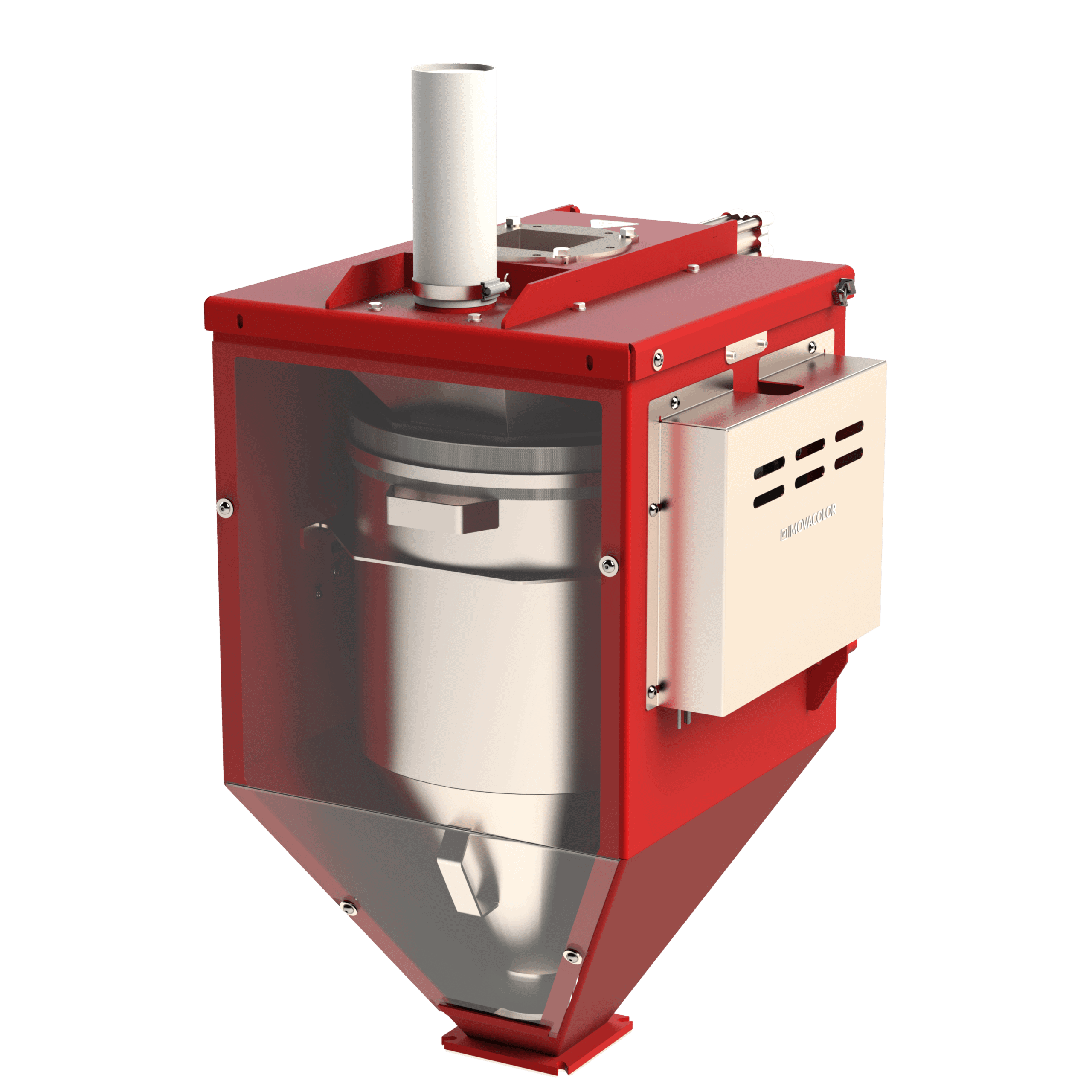

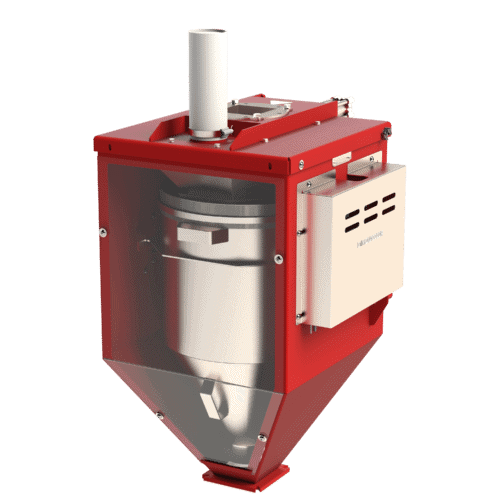

MMS 40 Weight Powder

MMS Weight Powder

A precise gravimetric measurement solution equipped with loss-in-weight technology for measuring powder consumption and throughput of your extrusion line.

Download brochure

Fill out the form below to receive the brochure by email.

This field is for validation purposes and should be left unchanged.

The MMS Weight Powder, part of our measuring solutions, is a solution built for extrusion throughput measurement. Its standout features include integrated load cells with loss-in-weight technology, making it an excellent solution for controlling additive flow by measuring your main material consumption.

Equipped with loss-in-weight capabilities, the MMS Weight Powder ensures accurate extrusion line capacity and main material consumption in kg/h. It can dynamically adjust dosing with MDS Balance Powders, which guarantees precise powder dosing in line with predetermined set point percentages.

The MMS Weight is suitable for precise measurement of extrusion line capacity and material consumption measurement. Due to its modular, scalable design and removable stainless-steel hopper, the MMS Weight allows you to save money and time by easily cleaning your hoppers and changing materials without experiencing significant downtime.

The system’s modular design and stainless-steel hopper enable seamless operation with pourable powders, such as PVC dry blend, masterbatch, and regrinds up to 180 degrees Celsius. Additionally, it allows you to control multiple co-extruders through a single interface for maximum ease of use and operator control.

Standard Equipment

  • Inclined and polished 40-liter hopper for low bulk density – capacity up to 1000kg/h
  • Two integrated loadcells 20 kg
  • 8” inch full-color touchscreen
  • Pneumatic knife gate
  • Calibration weight

As part of our modular dosing concept, the MMS Weight Powder can be tailored to align seamlessly with your unique production processes.

Ready to elevate your dosing precision and efficiency? Reach out to our product specialists today and discover how the MMS Weight Powder can optimize your extrusion production processes.



MMS 40 Weight Powder
Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Accurate up to 0.02%
High accuracy

Gain full control over your material input with our proven accurate dosing technology.


Throughput capacity up to 1000 kg/h, Weighing bin capacity 40L


Up to 0,02%




Configurable with a 40 or 60L hopper, Hopper loader, Extrusion line control add-on, Dosing stops, Part of the Movacolor modular dosing concept


Modbus TCP/IP, Profibus, Profinet, OPC/UA, Alarm, Warning, Run 2x0-10 VDC or 4-20 mA Potential free, 24VDC or extruder tacho (0-30VDC)


8” full colour touch screen controller, Capable of controlling multiple (co-)extrusion lines, Internal memory for static changes, Store up to 1000 recipies, Multilingual


Supply: 95-250 VAC, 50/60 Hz, By integrated automatic voltage selector, Consumption: 150 Watt maximum


Free-flowing powder, Dustry raw materials and/or regrinds


Modular, Compact and robust, With additional dust collection filters, Engineered and assembled in The Netherlands

*Click here to view the disclaimer

Double-action pneumatic cylinder
polished hopper for handing complicated dusty material
Inclined and polished 60-liter hopper for low bulk density

For capacity up to: 2500kg/h

Several acoustic alarm options
MDS Balance for the Hybrid Blender Series
Configurable with up to 14 MDS Balances
High temperature edition
Line Control
MCS Continuous Feeder

A configured solution combining the MDS Balance and MMS Weight for full traceability of main material and optimal accuracy for additives.

Main material hoppers
support bracket
Support bracket
Cable management kit
