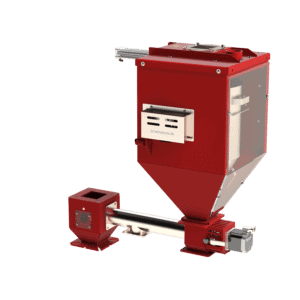

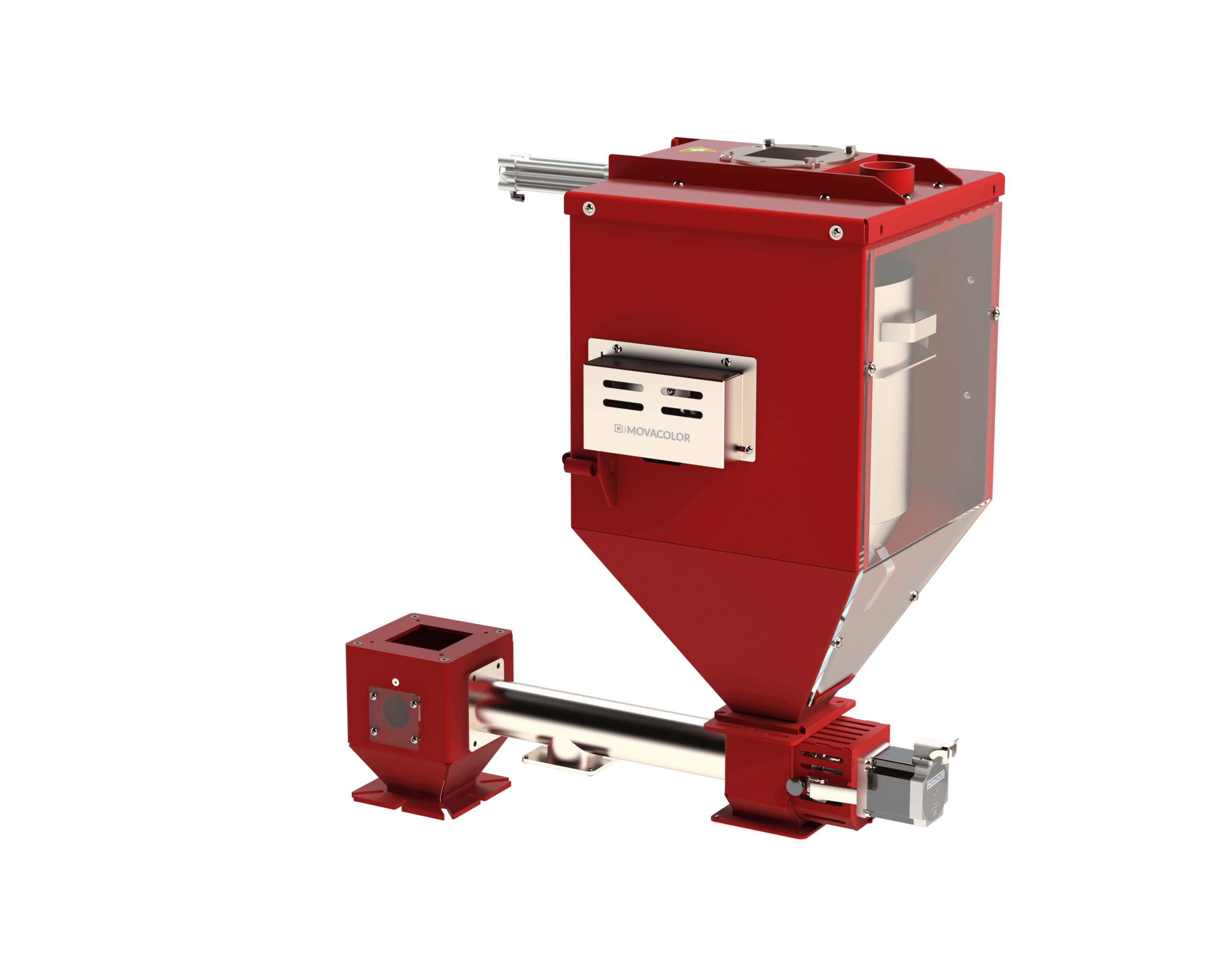

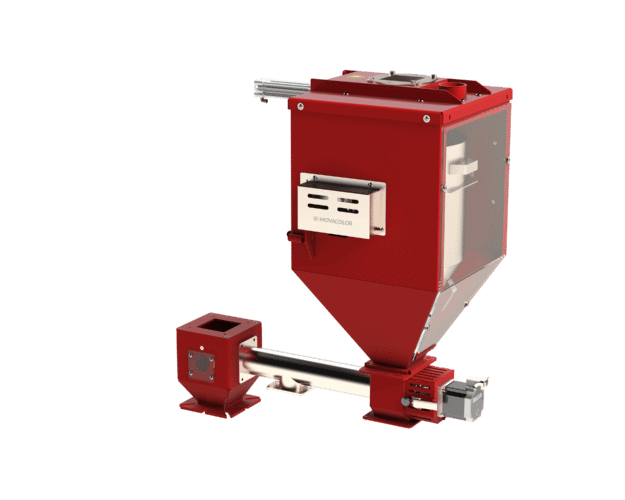

MDS 40 HO Balance

MDS HO Balance

The MDS HO Balance is the gravimetric answer for dosing high capacities up to 1000 kg/h.

Download brochure

Fill out the form below to receive the brochure by email.

Address
Hidden
This field is for validation purposes and should be left unchanged.

The MDS HO Balance is the gravimetric answer for dosing high capacities from 50 kg/h up to a maximum of 1000 kg/h. The system doses this high output of additive without making any concessions to accuracy. The gravimetric technology makes thispossible for both injection molding and extrusion applications.

The unit has an integrated weighing module that precisely measures the throughput by the loss-in-weight principle. The fully gravimetric system continually calibrates the dosage and adjusts automatically. The refilling of the MDS HO Balance is controlled by an integrated pneumatic operated knife valve at the top flange.

The MDS HO Balance handles granulates, difficult regrinds and free-flowing powders. It is capable ofprocessing hot materials up to 180°C.

The MDS HO Balance is part of our modular dosing concept and can be combined with other units and/or specifically tailored to suit the requirements of your production process. *This product is also available as a volumetric solution equipped with a brand new VoluTouch controller.



Videos

Images

MDS 40 HO Balance
Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Intuitive design, easy to clean
Intuitive design

Start working more efficiently quickly. This unit is supplied pre-configured and can be operated without extensive training.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Capacity

Up to 1000 kg/h

Accuracy

Process

Injection molding, Extrusion

Configuration

Configurable with a 20L, 40L or 60L hopper,

Communication

Modbus TCP/IP, Profibus, Profinet, OPC/UA,

Operation

8” full colour touch screen controller, Internal memory for static changes, Logging software for dynamic changes, Multilingual

Power

95-250 VAC, 50/6- Hz. By integrated automatic voltage selector, Consumption: 150 Watt maximum.

Materials

Granulates, Regrind, Powder (free flowing), Up to 180 °C

Design

Modular, Compact and robust, Made in the Netherlands

*Click here to view the disclaimer

Cable management kit

*Click here to view the disclaimer
