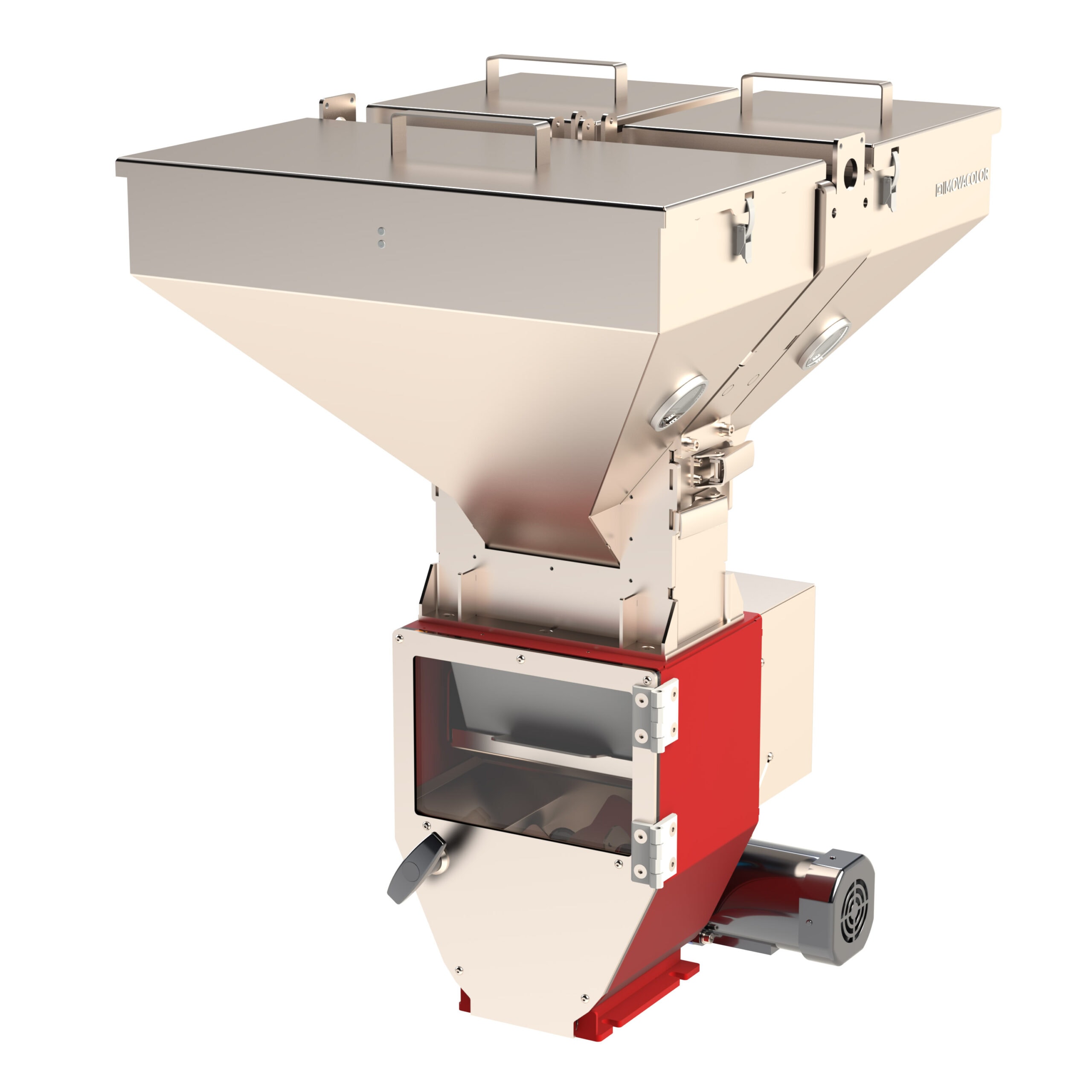

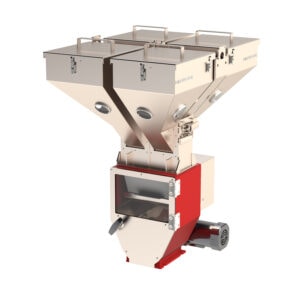

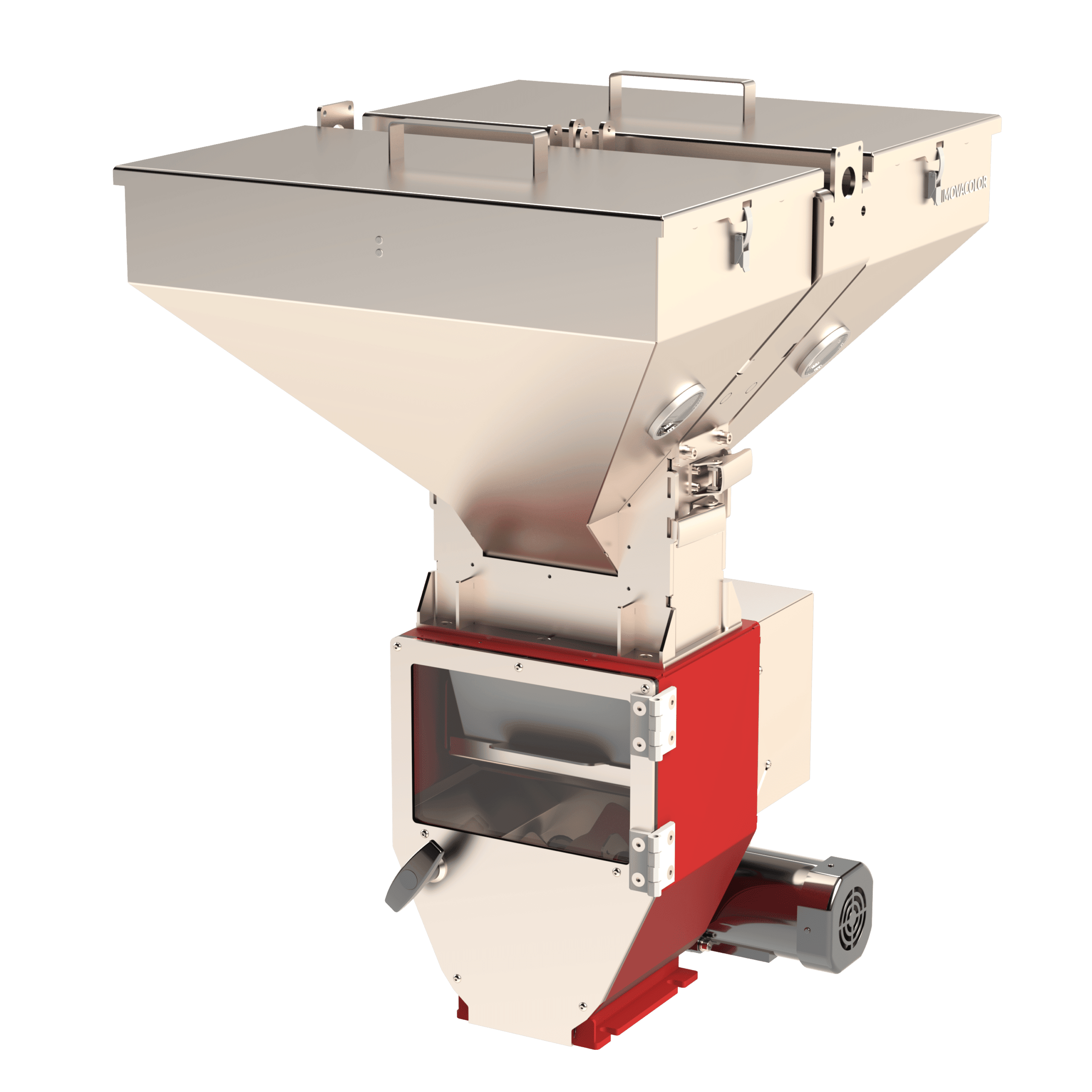

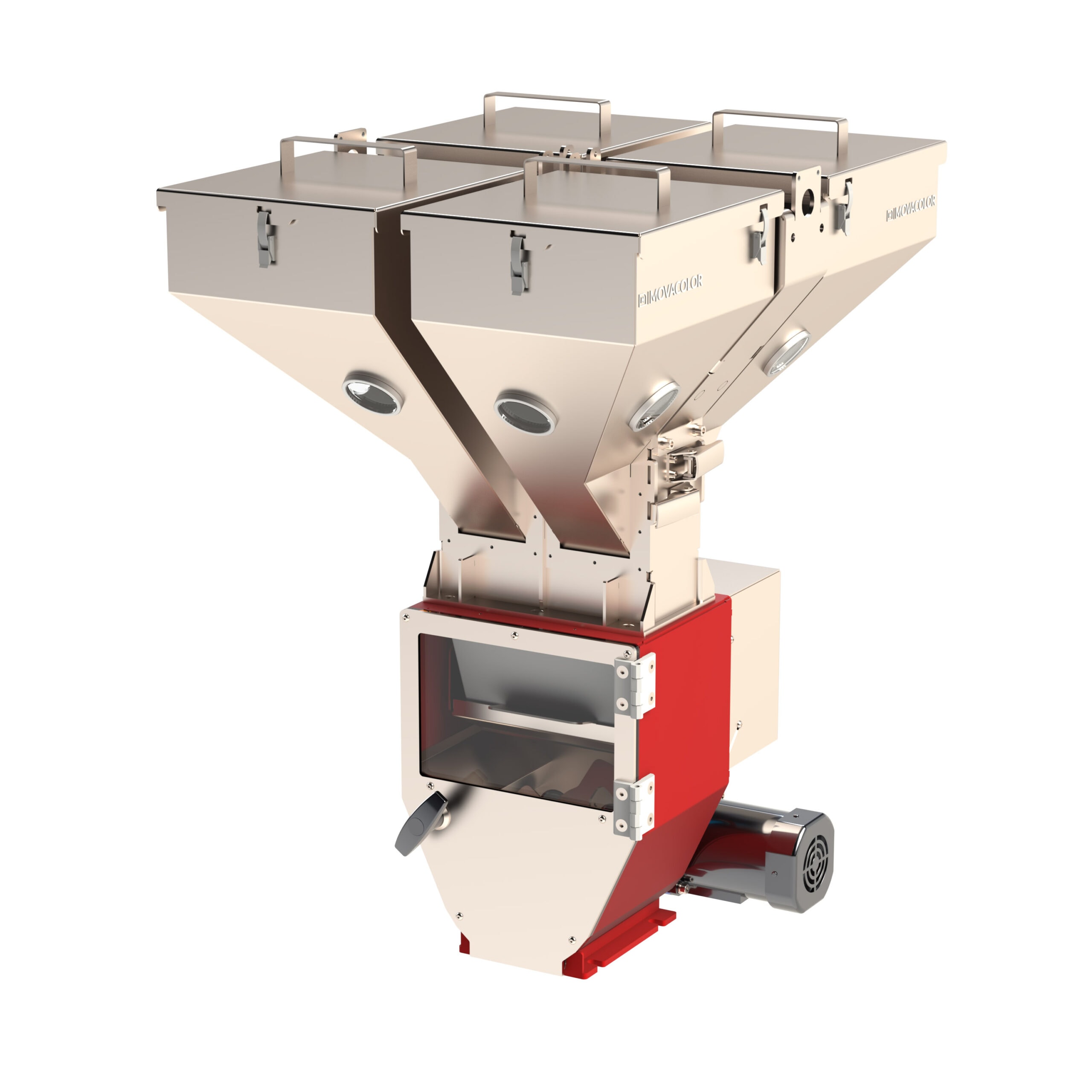

MBS 32 Blender

MBS Blender 3-series

A gravimetric blending solution equipped with gain-in-weight technology for efficiently handling a wide variety of low bulk-density materials

Download brochure

Fill out the form below to receive the brochure by email.

Address
Hidden
This field is for validation purposes and should be left unchanged.

The MBS Blender 3-series, part of the MBS blender range, provides a robust and durable solution for efficiently weighing and blending materials. Its compact design without mechanical parts or cables in the removable hopper allows them to be easily accessible for cleaning, material changes, and other routine maintenance tasks. Additionally, the blender 3-series is perfectly suitable for handling a wide range of materials up to 70 degrees with a throughput of up to 480kg/h.

Thanks to its unique valve design and gain-in-weight technology, it effectively dispenses several additives into a weighing chamber and accurately measures the additives added to your production process. After your material is weighed, it’s dropped into the mixing chamber, and fed to your production machine.

The MBS Blender offers all manufacturers extensive control over their production process and consistently proves its value in all applications by helping manufacturers significantly improve efficiency, reduce waste, and save costs, resulting in savings on materials and improved quality.

Standard Equipment

  • Weighing bin with 1.4kg batch size
  • 3-liter mixing chamber
  • Easy hopper removal system
  • Easy weighing bin and mixing chamber removal system
  • Mixing chamber level-sensor air-purge
  • Compressed air-gun system
  • 8“ full color portable touchscreen controller
  • Unique mixerblade
  • Hopper loader lifting device

The MBS Blender is part of our modular dosing concept and can be tailored to suit your plastic production process.

Ready to take your blending to the next level? Contact our product specialists today and discover how the MBS Blender can help you save on expensive material by producing more accurately.

Videos

Images

MBS 32 Blender
Accurate up to 0.02%
High accuracy

Gain full control over your material input with our proven accurate dosing technology.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Compact and robust design
Compact and robust design

Build with the end in mind. Start working more efficiently quickly without hassle.

Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Capacity

Throughput up to 480 kg/h*, Weighing bin capacity 1,2 liters, Mixing chamber capacity 3 liters, With overdrive mode

Accuracy

Up to 0,02%

Process

Injection molding, Extrusion, Blow molding, Compounding

Configuration

Configurable with 2-4 hoppers, Hopper loaders, Upgradable to a Hybrid Solution, Can be placed off-line

Communication

Modbus TCP/IP, Profibus*, Profinet*, OPC/UA*, Integrated hopper loader control, Alarm, Warning, Run, 2x0-10 VDC or 4-20 mA

Operation

8” full colour touch screen controller, Internal memory for static changes, Logging software for dynamic changes, Store up to 1000 recipies, Multilingual

Power

Supply: 230 VAC, 50 Hz or 115 VAC, 60 Hz, Consumption: 150 Watt maximum

Materials

Masterbatch, Regrind, Up to 120 °C

Design

Modular, Stainless steel, Easy to remove hassle free hoppers, High efficiency mixer, Compact and robust, Made in The Netherlands

*Click here to view the disclaimer

2-4 stainless-steel hoppers
hybrid solution for the MBS Blender
Hybrid Solution with MDS Balances
Custom solution for handling material up to 120 degrees

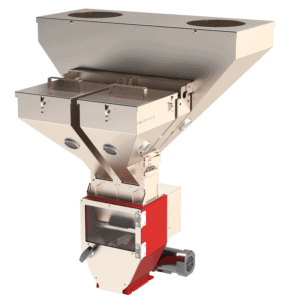

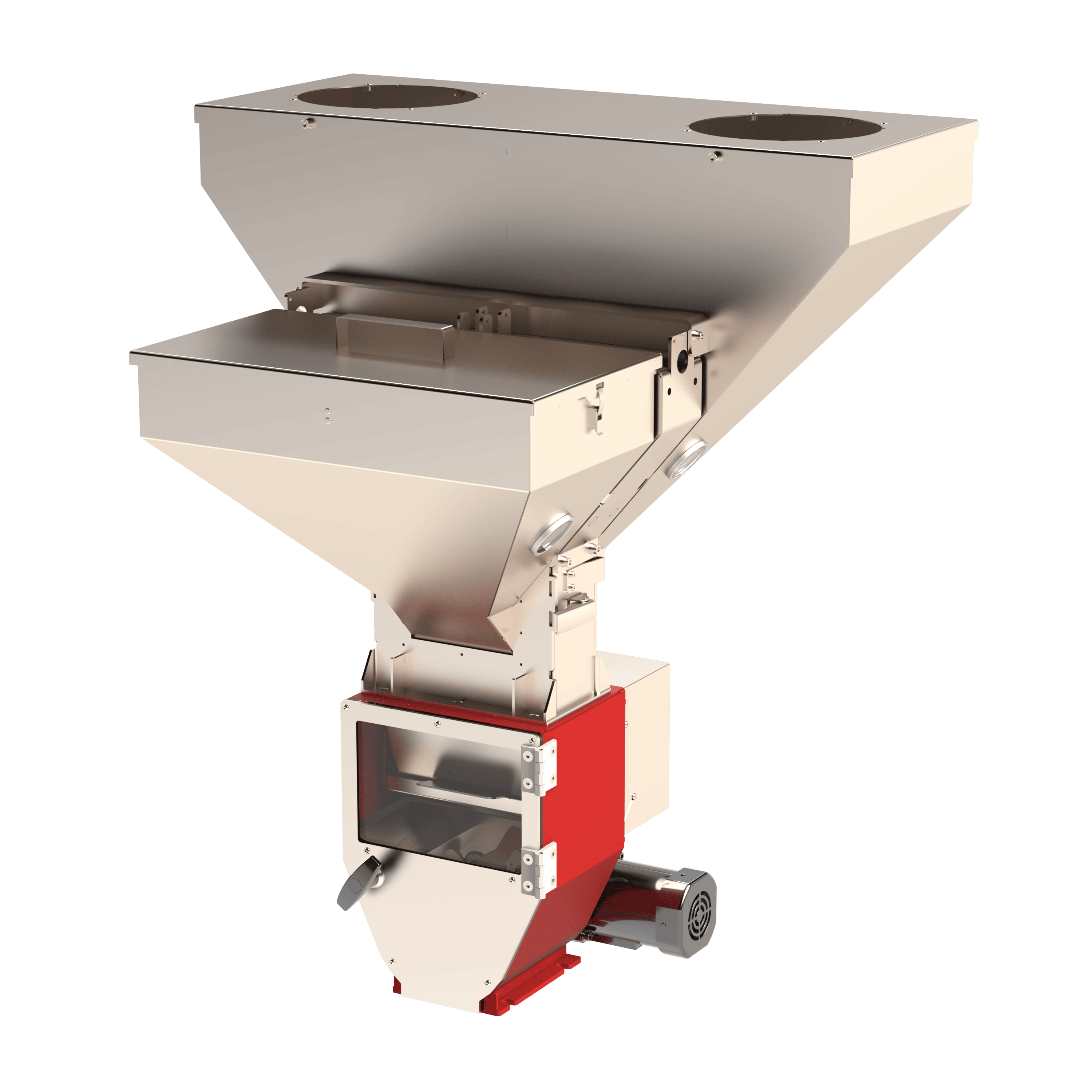

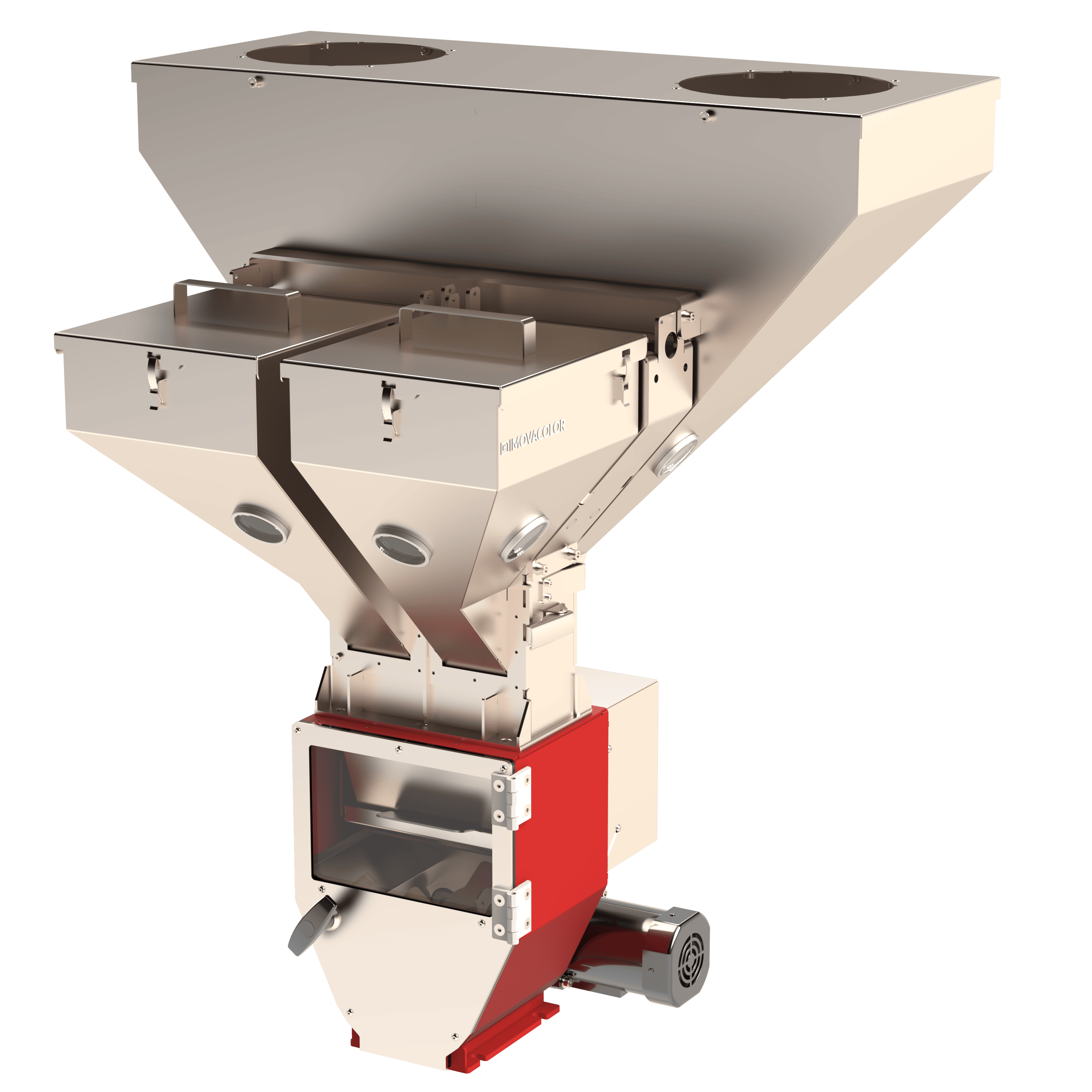

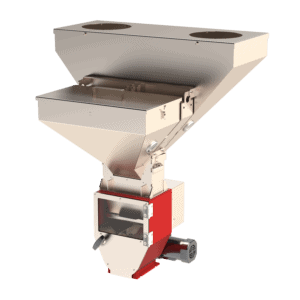

XL hopper
Multiple hopper loaders and support frames
Movable off-line frame with 40-liter bin
Movable off-line frame with 40-liter bin
Knife gate for the MBS Blender
Knife gate
