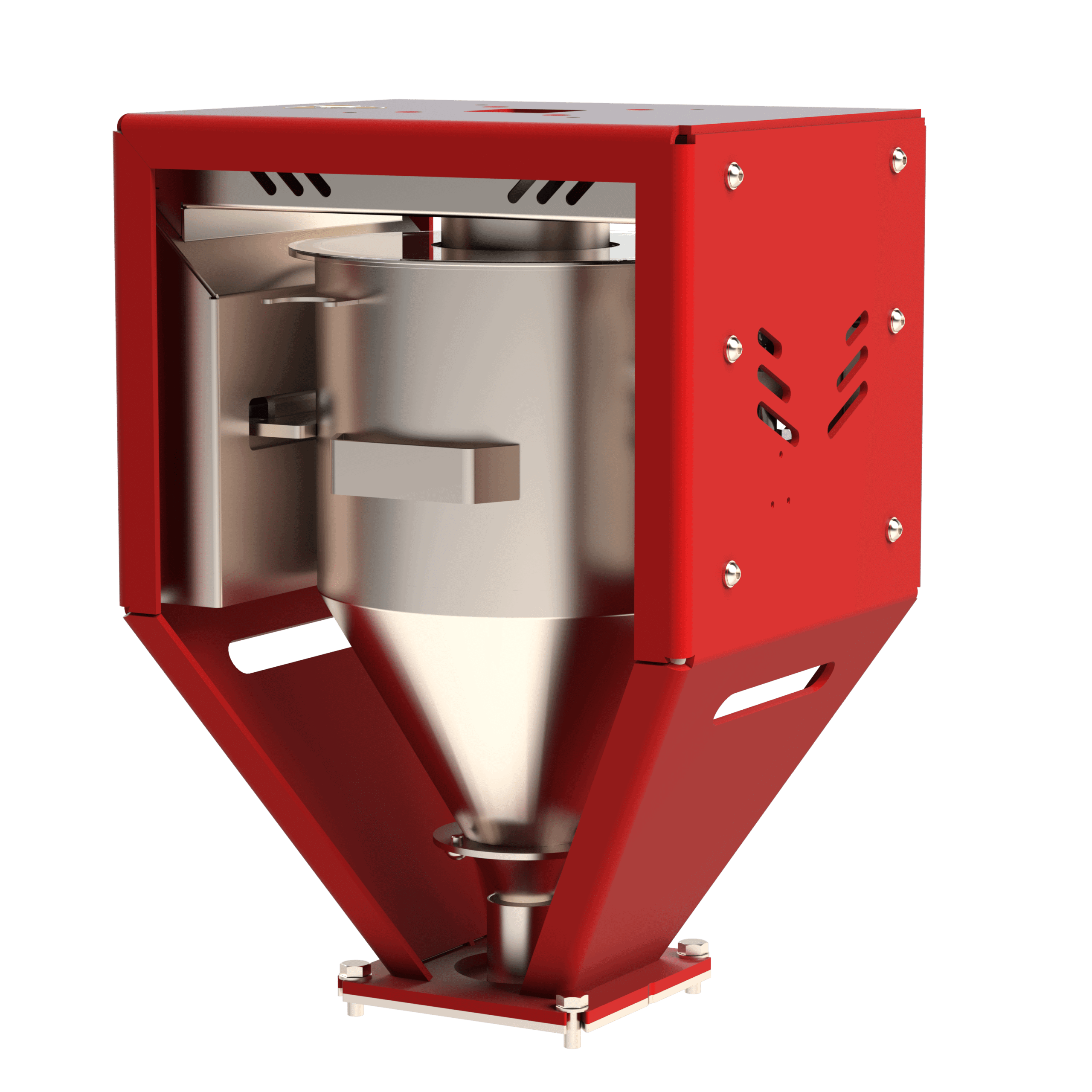

MMS 5 Weight

MMS Weight

A precise gravimetric measurement solution equipped with loss-in-weight technology for measuring the main material consumption and throughput of your extrusion line.

Download brochure

Fill out the form below to receive the brochure by email.

This field is for validation purposes and should be left unchanged.

 The MMS Weight, part of our measuring solutions, was introduced to the market to provide accurate and real-time measurement of extrusion line capacity and main material consumption.

Equipped with advanced kg/h and integrated load cells with loss in weight features, the MMS Weight is able to provide real-time insight into extrusion line capacity and main material consumption in kg/h.

With the MMS weight, the technology behind measuring your main material ensures that optional gravimetric dosing units (MCS Continuous Feeder) automatically adjust the feed rate to bulk density changes and the capacity variation of the extruder.

The MMS Weight is suitable for precise measurement of extrusion line capacity and material consumption measurement. Due to its modular, scalable design and removable stainless-steel hopper, the MMS Weight allows you to save money and time by easily cleaning your hoppers and changing materials without experiencing significant downtime.

The MMS Weight is designed for extrusion manufacturers who prioritize control and efficiency. The system’s modular design and stainless-steel hopper enable seamless operation with pourable powders, such as PVC dry blend, masterbatch, and regrinds up to 180 degrees Celsius. Additionally, it allows you to control multiple co-extruders through a single interface for maximum ease of use and operator control.

Standard Equipment

  • 40-liter stainless-steel hopper – capacity up to 1000 kg/h
  • Two integrated loadcells 20kg
  • 8″ inch full-color touchscreen
  • Pneumatic knife gate
  • Calibration weight

The MMS Weight is part of our modular dosing concept and can be tailored to suit your production process.

Ready to enhance your dosing precision and efficiency? Contact our product specialists today and discover how the MMS Weight can optimize your production processes.



MMS 5 Weight
Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.


Throughput capacity up to 100 kg/h*, Weighing hopper capacity 5L


Up to 0,02%




Configurable with a 5, 20, 40 or 60L hopper, Hopper loader, Extrusion line control software, Dosing stops, Part of the Movacolor modular dosing concept


Modbus TCP/IP, Profibus*, Profinet*, OPC/UA*, Alarm, Warning, Run 2x0-10 VDC or 4-20 mA Potential free, 24VDC or extruder tacho (0-30VDC)


8” full color touch screen display


Supply: 95-250 VAC, 50/60 Hz. By integrated automatic voltage selector. Consumption: 150 kw/h maximum


Virgin, Regrind, up to 180 °C


Modular, Compact and robust, Also available in powder edition, Engineered and assembled in The Netherlands

*Click here to view the disclaimer

Double-action pneumatic cylinder
Main Hopper 5 liter
5-liter stainless-steel hopper

For a capacity up to 100 kg/h

Main Material Hopper 20 liter
20-liter stainless-steel hopper

For a capacity up to 200 kg/h

60-liter stainless-steel hopper

For a capacity up to 2500 kg/h

Several acoustic alarm options
High temperature edition
MDS Balance for the Hybrid Blender Series
Configurable with up to 14 MDS Balances
Line Control
MCS Continuous Feeder

A configured solution combining the MDS Balance and MMS Weight for full traceability of main material and optimal accuracy for additives.

Main material hoppers
support bracket
Support bracket
Cable management kit

*Click here to view the disclaimer
