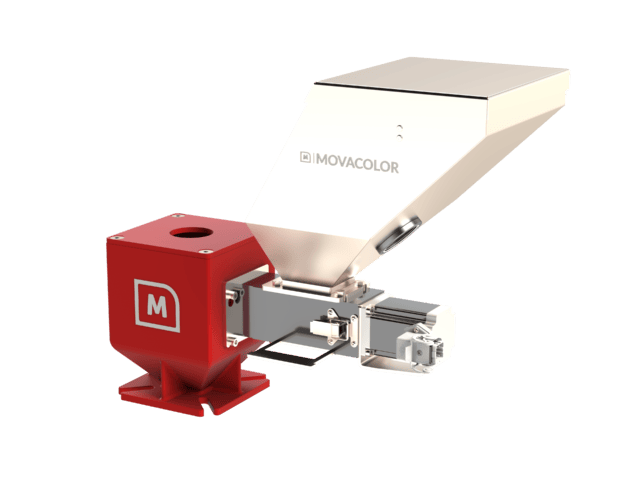

MDS Volumetric Feeder

MDS Volumetric Feeder

A budget-friendly volumetric dosing solution equipped with a variety of options and functionalities for efficiently feeding plastic material into your production.

Download brochure

Fill out the form below to receive the brochure by email.

Address
Hidden
This field is for validation purposes and should be left unchanged.

Our brand-new MDS Volumetric Feeder, part of our modular dosing solutions, addresses the need for a well-engineered dosing unit at a cost-efficient price point. This dosing unit offers high value for money, including functionalities from its predecessors, as well as new hardware and software features.

The MDS Volumetric Feeder comes with a high-end stepper motor, a wide selection range of dosing cylinders and augers, a stainless-steel hopper, and a robust neckpiece. Optimal blend homogeneity is accomplished through inline dosing using a centralized neckpiece insert.

The MDS Volumetric Feeder includes a dedicated 4.3” VoluTouch controller. This capacitive touchscreen controller can efficiently manage up to two units and is equipped with intuitive functionalities, offering ease of use through simple recipe management and connectivity via a wireless web interface. Additionally, this dosing solution allows 60-second cleaning and material change through a discharge valve with easy motor and dosing tool release and change.

The MDS Volumetric Feeder allows for trouble-free dosing, with the capability to handle a wide variety of materials, from granular material to microgranulate and free-flowing powder up to 70 degrees Celsius. It proves its value in improving efficiency, reducing waste, and saving costs in injection molding, extrusion, blow molding, and compounding processes.

Standard Equipment:

  • Discharge valve
  • Power supply
  • Stepper motor
  • NBST40 neckpiece
  • GLX dosing cylinder
  • VoluTouch
  • 6L stainless-steel hopper

The MDS Volumetric Feeder is part of our modular dosing concept and can be combined with other units and/or specifically tailored to suit the requirements of your production process.

Ready to optimize your dosing precision and efficiency? Contact our product specialists today and discover how our dosing systems can enhance your production processes.

Videos

Images

MDS Volumetric Feeder
MDS Volumetric Feeder
MDS Volumetric Feeder
MDS Volumetric Feeder
MDS Volumetric Feeder
Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Compact and robust design
Compact and robust design

Build with the end in mind. Start working more efficiently quickly without hassle.

Produce more consistently
High efficiency

Reduce waste and save costs by producing more consistently.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Capacity

Configurable with a 6 or 12L hopper, Hopper loaders, Multiple augers and dosing cylinders, stepper motor, Mixers, and Mixing Neckpieces, Part of the Movacolor modular dosing concept

Communication

Hopper level sensor (2x) 24VDC 0.5A max Alarm 24VDC 0.5A max Run 24VDC 0.5A max Timer: start dosing: 24VDC or potential free Tacho synchronization: 0-30VDC Relais: start/stop dosing

Operation

4.3” capacitive color touch screen controller, Store up to 100 recipes, Data logging, Multilingual

Power

Supply: 95-264 VAC, 47/63 Hz. by integrated automatic voltage selector, Consumption: 200 Watt maximum

Materials

Virgin, Masterbatch, Free-flowing powder, Granulate, Microgranulate

Design

Modular, Intuitive design, Stainless steel, with a robust design for additional durability, With easy-drain system, Engineered and assembled in The Netherlands

*Click here to view the disclaimer

A range of highly accurate dosing tools and augers
Main Material Hopper 20 liter
Two stainless-steel main material hoppers (20 and 40L)
Several visual and acoustic alarm options
Multiple hopper loaders and support frames
12-liter hopper
Compact and robust design
Recommended spare-parts package
Mixing neckpieces: MIXBH, MIXBHA, MIXPHA
Mixers: MIX50, MIX100
Neckpieces: NST40, NST90, NBH, NBHA, NPH, NPHA

*Click here to view the disclaimer
