MBS 204 Blender

MBS 204 Blender

Compact and robust batch blender capable of handling a wide variety of (low bulk density) materials with ease.

Download brochure

Fill out the form below to receive the brochure by email.

This field is for validation purposes and should be left unchanged.

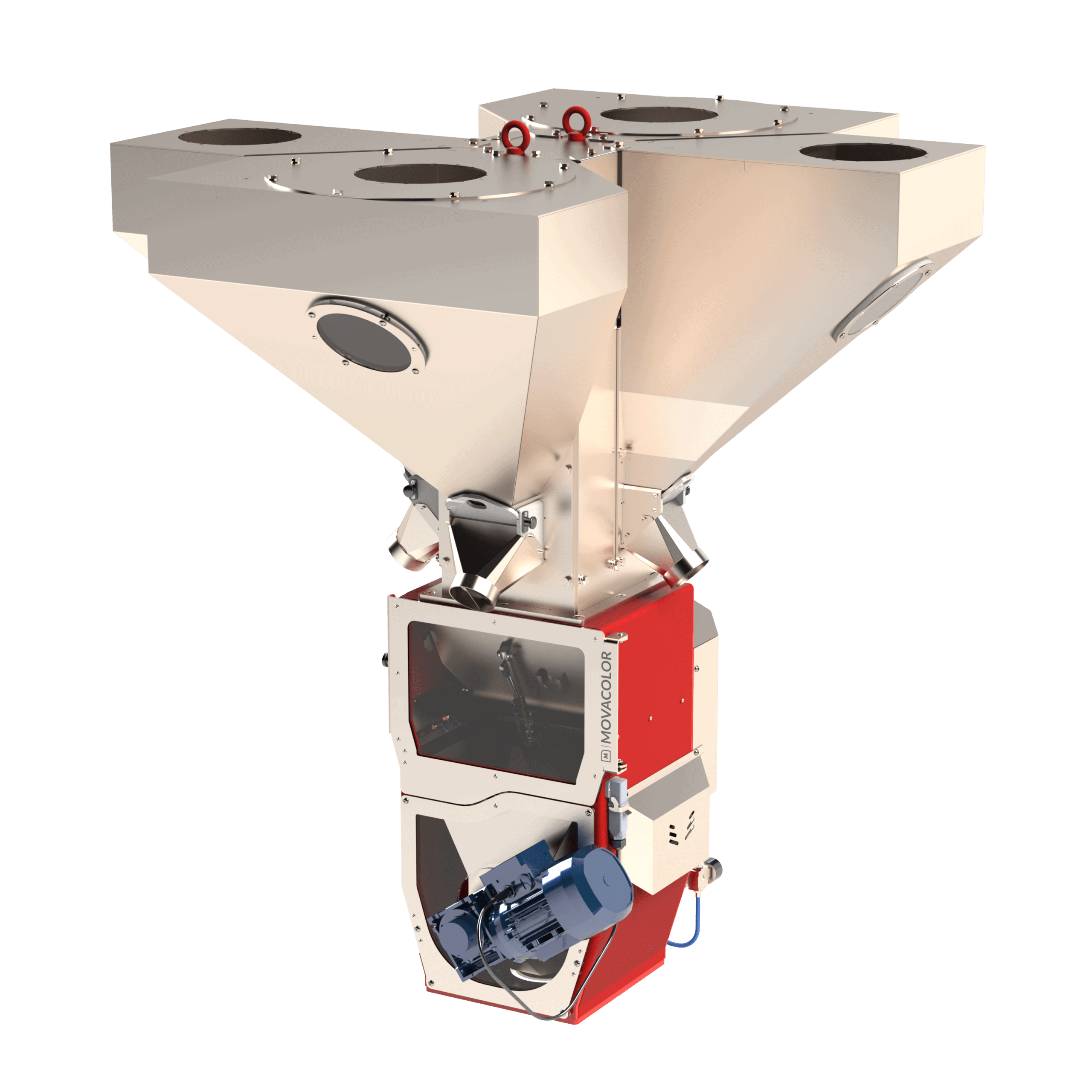

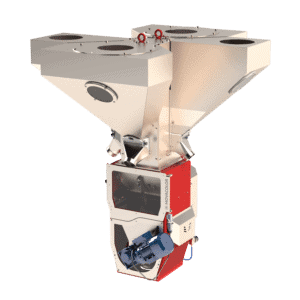

The MBS 204 Blender is a compact and robust batch mixer capable of processing a wide variety of materials (with low bulk density) with an accuracy of 0.02% and a throughput of up to 1600 kg/h.

Because the MBS 204 Blender has no mechanical and/or moving parts in the hoppers, it is very easy to operate and maintain. In addition, the hoppers are equipped with an easy-drain system that allows for color changes to be performed easily.

Go beyond blending

Our MBS 204 Blender is 4.0 compatible and part of our modular concept, which means that it can be configured as desired and easily combined with other Movacolor products. This gives you the opportunity, for example, to choose to dose your critical components separately by adding dosing units from our g-series. In this way you combine dosing and mixing in one system for optimal results and even better traceability. Click here to learn more about our Hybrid Solutions.



MBS 204 Blender
Accurate up to 0.02%
High accuracy

Gain full control over your material input with our proven accurate dosing technology.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Compact and robust design
Compact and robust design

Build with the end in mind. Start working more efficiently quickly without hassle.

Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.


Throughput up to 1100 kg/h*, Weighing bin capacity 6 liters, Mixing chamber capacity 20 liters, With overdrive mode


Up to 0,02%


Injection molding, Extrusion, Blow molding, Compounding


Configurable with 2-8 hoppers, Hopper loaders, Can be placed off-line, Optional real-time throughput measurement


Modbus TCP/IP, Profibus*, Profinet*, OPC/UA*, Integrated hopper loader control, Alarm, Warning, Run, 2x0-10 VDC or 4-20 mA potential free, 24VDC or extruder tacho (0-30VDC)


8” full colour touch screen controller, Internal memory for static changes, Logging software for dynamic changes, Store up to 1000 recipies, Multilingual


Supply: 230 VAC, 50 Hz or 115 VAC, 60 Hz, Consumption: 400 Watt maximum


Masterbatch, Regrind, Up to 120 °C


Modular, Stainless steel, Hoppers with easy drain system, High efficiency mixer, Compact and robust, Made in The Netherlands

*Click here to view the disclaimer
