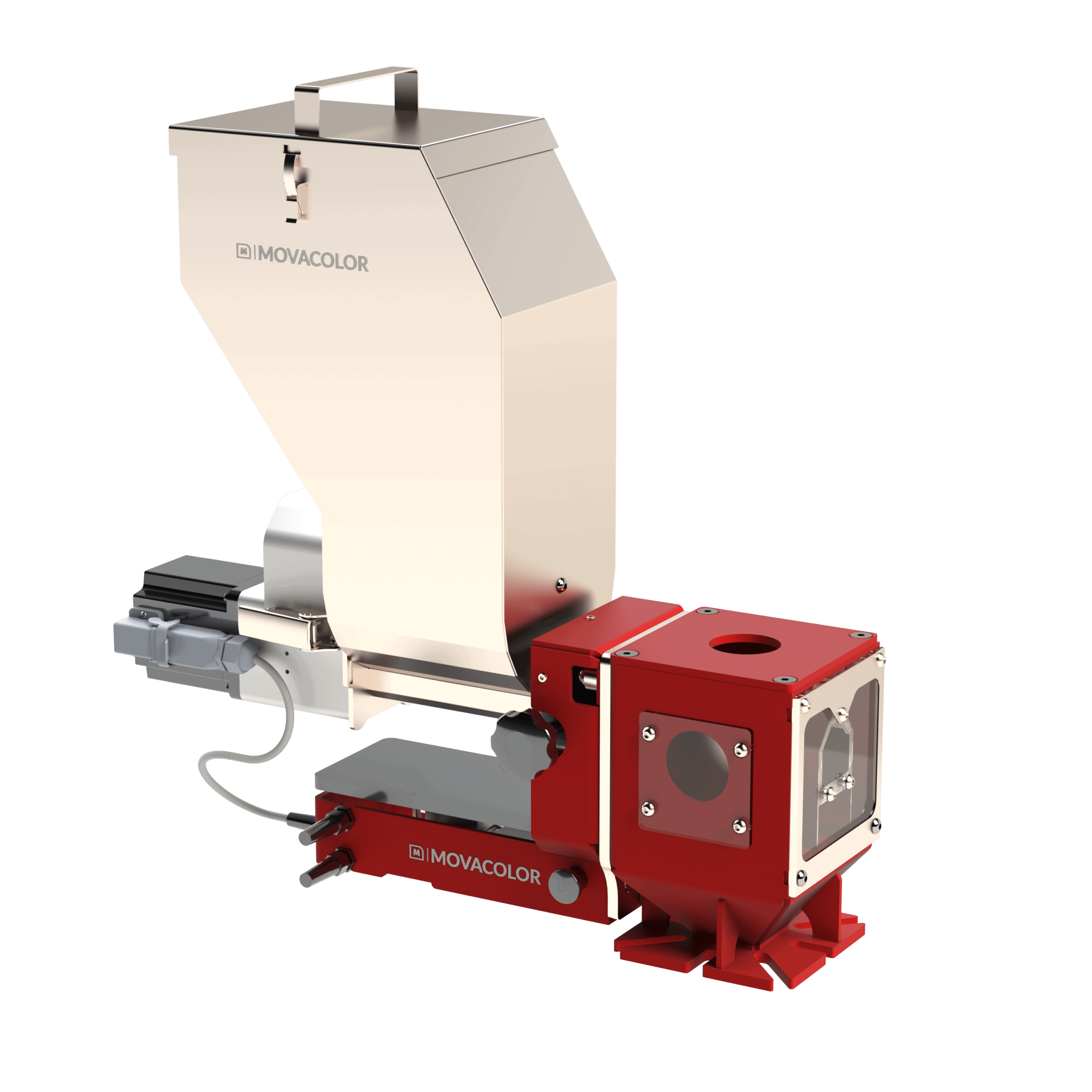

MDS 12 Balance Powder

MDS 12 Balance Powder NFF

Accurate and compact gravimetric dosing unit for handling free- and non-free flowing powders with ease.
Read more

Download brochure

Fill out the form below to receive the brochure by email.

Address
Hidden
This field is for validation purposes and should be left unchanged.

Free trial

Dosing powder is one of the most difficult challenges in the field of dosing, especially when we talk about non-free-flowing powders at extreme low rates. Expensive powder additives that add high impact to your process require the best in thefield of accuracy and reliability.

Movacolor has, based on its proven gravimetric technology, developed a compact powder dosing unit to do just that. It doses as low as 100 g/h, but also as high as 40 kg/h. Double spiral and hopper agitationensure trouble free dosing of the most difficult powders. And this is accomplished in both injection molding and extrusion applications.

The unit operates as a single unit, but can also be integrated into our unique modular continuousblending system, allowing to add the most difficult powders to the blend of your extruder. The MDS 12 Powder is a truly unique product in the market that makes you forget any powder dosing problem you currently might have.

Videos

Images

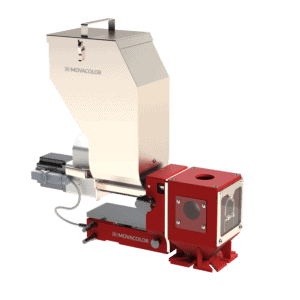

MDS 12 Balance Powder NFF
Accurate up to 0.02%
High accuracy

Equipped with unique loss-in-weight dosing software, this unit achieves remarkable levels of accuracy.

Movacolor Modular Dosing Concept
Modular system

This unit is part of the Movacolor modular dosing and blending concept and can easily be integrated and/or combined with all other Movacolor products.

Intuitive design, easy to clean
Intuitive design

This unit is easy to handle, saving you time on maintenance and color changes.

Industry 4.0 compatible
Industry 4.0 compatible

Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.

Capacity

Wide throughput range of 0,05 up to 45 kg/h

Accuracy

Dosing as low as 50 g/h, With automatic material calibration

Process

Injection molding, Extrusion, Blow molding, Compounding

Configuration

Configurable with a 5 or 12L hopper, Hopper loaders, Multiple double-spiral (self-cleaning) augers, Part of the Movacolor modular dosing concept

Communication

Modbus TCP/IP, Profibus, Profinet, OPC/UA, Integrated hopper loader control, Alarm, Warning, Run 2x0-10 VDC or 4-20 mA Potential free, 24VDC or extruder tacho (0-30VDC)

Operation

8” full colour touch screen controller, Internal memory for static changes, Logging software for dynamic changes, Store up to 1000 recipies, Multilingual

Power

Supply: 95-250 VAC, 50/60 Hz, By integrated automatic voltage selector, Consumption: 150 Watt maximum

Materials

Free-flowing powder, Non-free flowing powder

Design

Modular, Intuitive design, Polished stainless steel, Agitator for optimal material flow, High torque motor, Also available in volumetric version, Engineered and assembled in The Netherlands
